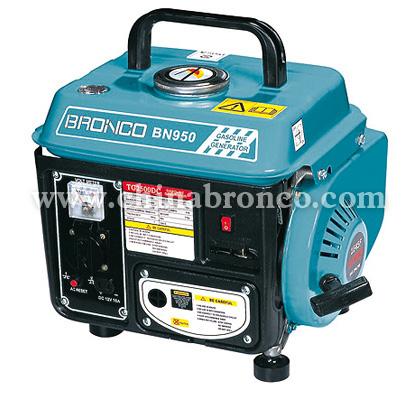

| Model: BN650 BN950 |
|
Feature:
-
The start power of generator set is a qualified gasoline engine,insuring fuel burning effectively and economically.
-
Adopting several reliable measures for shock protection,with a small shock of the whole sets.
-
With a whole closed structure set,adopting light materials,small cubage and light weight.
|
Generator |
Specification |
BN650 |
BN950 |
|
Rated rotation speed(rmp) |
3000 |
3600 |
3000 |
3600 |
|
Rated voltage(V) |
115 230 120 240 |
|
Max. output power(W) |
550 |
650 |
750 |
800 |
|
Rated output power |
450 |
550 |
650 |
750 |
|
Rated Frequency |
50 |
60 |
50 |
60 |
|
Phase |
Single Phase |
|
DC output |
12V¡Á8.3A |
|
Voltage regulate |
Condenser Type |
|
Power factor |
1.0 |
1.0 |
1.0 |
1.0 |
|
Continuous running time(hrs) |
10 |
10 |
7.5 |
7.5 |
|
Engine |
Bore*stroke(mm) |
45¡Á40 |
|
Displacement£¨cm3£© |
63 |
63 |
63 |
63 |
|
Compression Ratio |
7:1 |
7:1 |
7:1 |
7:1 |
|
Recommend power Output£¨HP/rpm£© |
1.5/3600 |
|
Max Torque N.m/rpm£¨N.m/rpm) |
3.5/2800 |
|
Fuel |
Gasoline |
|
Starting system |
Recoil |
|
Oil capacity |
50:1 |
50:1 |
50:1 |
50:1 |
|
Fuel tank capacity(L) |
4 |
4 |
4 |
4 |
|
Engine type |
BN1E45F |
|
Noise level(7M) |
62 |
62 |
62 |
62 |
|
Parking Details |
Measurement |
365¡Á320¡Á325 |
365¡Á320¡Á325 |
|
|
14 |
15 |
|
Loading quantity in 20¡¯ |
784 |
784 |
|
Loading quantity in 40¡¯ |
1568 |
1466 |
|
Loading quantity in 40¡¯HQ |
1571 |
1466 | |
|
|
