Position: - > Gasoline Generators |
![]() |
Back>> |
 |

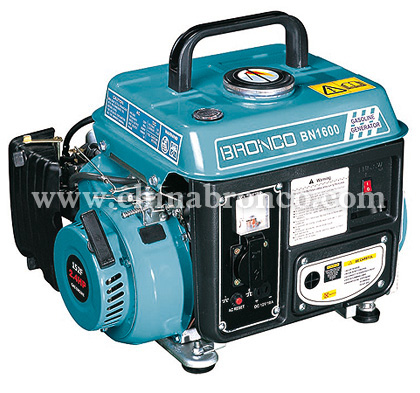

| Model: BN1600 |
|
Feature:
-
The start power of generator set is a qualified gasoline engine,insuring fuel burning effectively and economically.
-
Adopting several reliable measures for shock protection,with a small shock of the whole sets.
-
With a whole closed structure set,adopting light materials,small cubage and light weight.
|
Generator |
¡¡
|
BN1600 |
|
Rated rotation speed(rpm) |
3000 |
3600 |
|
Rated voltage(V) |
115 230 120/240 |
|
|
Max. output power(W) |
950 |
1000 |
|
Rated output power(W) |
850 |
950 |
|
Rated Frequency(Hz) |
50 |
60 |
|
Phase |
Single Phase |
|
DC output |
12V¡Á8.3A |
|
Voltage regulate |
Condenser Type |
|
Power factor |
1.0 |
1.0 |
|
Continuous running time(hrs) |
6.5 |
6.5 |
|
Engine |
Bore¡Ástroke(mm) |
54¡Á38 |
|
|
Displacement(cm3) |
87 |
87 |
|
Compression Ratio |
8.5:1 |
8.5:1 |
|
Recommend power Output(HP/rpm) |
2.8/3600 |
|
Max Torque(N.m/rpm) |
4.2/2800 |
|
Fuel |
Gasoline |
|
Satrting system |
Recoil |
|
Ignition system |
TCI |
TCI |
|
Oil capacity |
0.4 |
0.4 |
|
Fuel tank capacity(L) |
4 |
4 |
|
Engine type |
BN154F |
BN154F |
|
Noise level(7m)(dB) |
62 |
62 |
|
Parking Details |
Measurement(mm) |
480¡Á390¡Á350 |
|
|
22 |
|
Loading quantity in 20¡¯ |
432 |
|
Loading quantity in 40¡¯ |
864 |
|
Loading quantity in 40¡¯HQ |
1000 | |
|
|
