Position: - > Gasoline Generators |
![]() |
Back>> |
 |

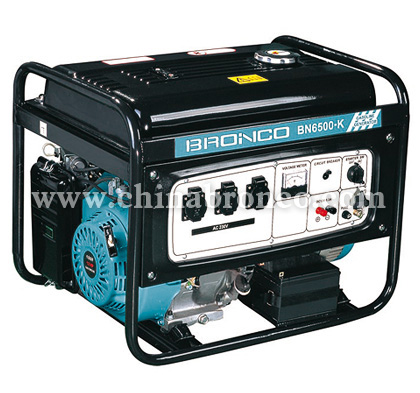

| Model: BN3500-K BN4500-K BN5500-K BN6500-K |
|
Feature:
-
The start power of generator set is a qualified gasoline engine,insuring fuel burning effectively and economically.
-
Adopting several reliable measures for shock protection,with a small shock of the whole sets.
-
With a whole closed structure set,adopting light materials,small cubage and light weight.
|
Generator |
Specification |
BN3500-K |
BN4500-K |
BN5500-K |
BN6500-K |
|
Rated rotation speed(rpm) |
3000 |
3600 |
3000 |
3600 |
3000 |
3600 |
3000 |
3600 |
|
Rated voltage(V) |
115 230 120/240 |
|
Max. output power(W) |
3300 |
3500 |
3800 |
4000 |
4300 |
4500 |
5500 |
5700 |
|
Rated output power(W) |
3000 |
3200 |
3500 |
3700 |
4000 |
4200 |
5000 |
5200 |
|
Rated Frequency(Hz) |
50 |
60 |
50 |
60 |
50 |
60 |
50 |
60 |
|
Phase |
Single Phase |
|
DC output |
12V¡Á8.3A |
|
Voltage regulate |
AVR |
|
Power factor |
1.0 |
1.0 |
1.0 |
1.0 |
1.0 |
1.0 |
1.0 |
1.0 |
|
Continuous running time(hrs) |
13 |
13 |
11 |
11 |
10 |
10 |
8 |
8 |
|
Engine |
Bore¡Ástroke(mm) |
73¡Á58 |
77¡Á58 |
82¡Á64 |
88¡Á64 |
|
Displacement(cm3) |
242 |
270 |
337 |
389 |
|
Compression Ratio |
8.2:1 |
8.2:1 |
8.0:1 |
8.0:1 |
|
Recommend power Output(HP/rpm) |
8/3600 |
9/3600 |
11/3600 |
13/3600 |
|
Max Torque N.m/rpm(N.m/rpm) |
17/2500 |
19/2500 |
23.5/2500 |
25.5/2500 |
|
Fuel |
Gasoline |
|
Satrting system |
Recoil/Electric |
|
Lgnition system |
TCI |
TCI |
TCI |
TCI |
TCI |
TCI |
TCI |
TCI |
|
Oil capacity(L) |
1.1 |
1.1 |
1.1 |
1.1 |
1.1 |
1.1 |
1.1 |
1.1 |
|
Fuel tank capacity(L) |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
|
Engine type |
BN168F-1 |
BN168F-1 |
BN173F |
BN173F |
BN173F |
BN173F |
BN177F |
BN177F |
|
Noise level(7m)(Db) |
68 |
68 |
69 |
69 |
72 |
72 |
76 |
76 |
|
Parking Details |
Measurement(mm) |
710¡Á530¡Á550 |
|
|
67.5 |
70 |
72 |
74.5 |
|
Loading quantity in 20¡¯ |
128 |
128 |
128 |
128 |
|
Loading quantity in 40¡¯ |
264 |
264 |
264 |
264 |
|
Loading quantity in 40¡¯HQ |
264 |
264 |
264 |
264 | |
|
|
