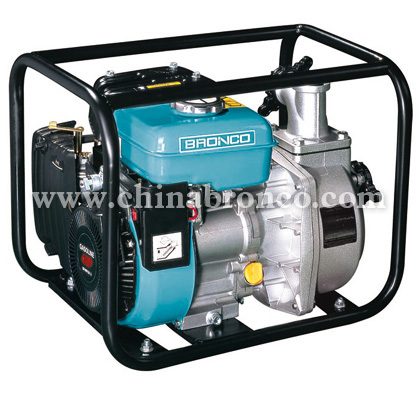

| Model: WP15 WP20 WP30 |
|
Feature:
-
Adopt OHV engines.
-
Close in strcture and convenient in operation.
-
Low noise,less oil consumption, linght weight and large discharge.
-
No need power source,safe in using,being the ideal selection of agricultural irrigation and industrial-use water.
|
Type |
WP15 |
WP20 |
WP30 |
|
Outlet Size(mm) |
40 |
50 |
80 |
|
Inlet size(mm) |
40 |
50 |
80 |
|
Speed (rpm) |
3600 |
3600 |
3600 |
|
Displacement Q.max(m3/h) |
21 |
36 |
60 |
|
Lift H.max(m) |
20 |
26 |
28 |
|
Suction(m) |
7 |
7 |
7 |
|
Engine Model |
BN154F |
BN168F |
BN168F |
|
Engine Type |
Forced air-cooled 4-stroke orlv |
|
Bore¡ÁStroke(mm) |
54¡Á38 |
68¡Á45 |
68¡Á45 |
|
Displacement(cm3) |
87 |
163 |
163 |
|
Compression Ratio |
7.7:1 |
8.5:1 |
8.5:1 |
|
Max Powwer Output(HP/rmp) |
2.5/3600 |
5.5/3600 |
5.5/3600 |
|
Max Torque(N¡¤m/rpm£© |
4.2/2800 |
11/2500 |
11/2500 |
|
Ignition System |
Non-contact transistorized ignition(TCI) |
|
Start Model |
Recoil an hand -operated |
|
Air Cleaner |
semi-dry |
semi-dry |
semi-dry |
|
Fuel Tank Capacity£¨L£© |
1.6 |
3.6 |
3.6 |
|
Fuel Consumption(g/Kw.h) |
¡Ü450 |
¡Ü450 |
¡Ü450 |
|
Oil Capacity(L) |
/ |
0.6 |
0.6 |
|
Packing Dimensions (mm) |
450¡Á345¡Á360 |
480¡Á385¡Á415 |
505¡Á385¡Á460 |
|
N.W/G.W(Kg) |
17.5 |
22.5 |
25 |
|
loading quantity in 20¡ä |
480 |
360 |
330 |
|
loading quantity in 40¡ä |
1020 |
720 |
690 |
|
loading quantity in 40¡äHQ |
1190 |
864 |
828 | |
|
|
