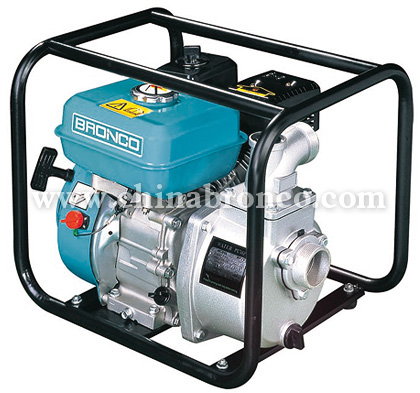

| Model: WP10 |
|
Feature:
-
Adopt OHV engines.
-
Close in strcture and convenient in operation.
-
Low noise,less oil consumption, linght weight and large discharge.
-
No need power source,safe in using,being the ideal selection of agricultural irrigation and industrial-use water.
|
Type |
WP10 |
|
Outlet Size(mm) |
25 |
|
Inlet size(mm) |
25 |
|
Speed (rpm) |
6500 |
|
Displacement Q.max(m3/h) |
8 |
|
Lift H.max(m) |
20 |
|
Suction(m) |
7 |
|
Engine Model |
BN1E40F-5 |
|
Engine Type |
Forced air-cooled 2-stroke |
|
Bore¡ÁStroke(mm) |
40¡Á34 |
|
Displacement(cm3) |
43 |
|
Compression Ratio |
7.7:1 |
|
Max Powwer Output(HP/rmp) |
1.5/6500 |
|
Max Torque(N¡¤m/rpm£© |
1.8/5000 |
|
Ignition System |
C.D.L |
|
Start Model |
Recoil an hand -operated |
|
Air Cleaner |
semi-dry |
|
Fuel Tank Capacity£¨L£© |
1.2 |
|
Fuel Consumption(g/Kw.h) |
610 |
|
Oil Capacity(L) |
/ |
|
Packing Dimensions (mm) |
390¡Á300¡Á340 |
|
N.W/G.W(Kg) |
10 |
|
loading quantity in 20¡ä |
684 |
|
loading quantity in 40¡ä |
1404 |
|
loading quantity in 40¡äHQ |
1638 | |
|
|
