Position: - > Air-cooled Diesel Generators |
![]() |
Back>> |
 |

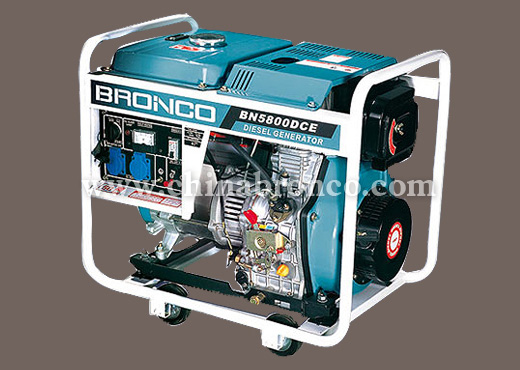

| Model: BN5800DCE |
|
|
Model |
BN2800DCE |
BN3800DCE |
BN5800DCE |
BN5800DCE(3-Phase) |
|
Engine model |
BN170F/E |
BN178F/E |
BN186F/E |
|
Rated frequency(Hz) |
50 |
60 |
50 |
60 |
50 |
60 |
50 |
60 |
|
Rated voltage(V) |
220 |
220/110 |
220 |
220/110 |
220 |
220/110 |
400/230 |
400/230 |
|
Rated current(A) |
7.7 |
9.1/18.2 |
12.7 |
15/30 |
20.5 |
22.7/45.5 |
10.8/20.4 |
13.1/22.75 |
|
Rated output power(Kw) |
1.7 |
2.0 |
2.8 |
3.3 |
4.5 |
5.0 |
4.5 |
5.0 |
|
Max.output power(Kw) |
2.0 |
2.2 |
3.2 |
3.8 |
5.0 |
5.5 |
5.0 |
5.5 |
|
Bore¡ÁStroke©zmm©{ |
70¡Á55 |
70¡Á62 |
86¡Á70 |
|
Compression ratio |
20£º1 |
19£º1 |
|
Starting system |
Recoil starter/E-starter |
|
Rotation direction |
clockwise |
|
Lubrication system |
pressure splashed |
|
Fuel consumption£¨g/kw.h) |
£¼284 |
£¼297 |
£¼280 |
£¼293 |
£¼273 |
£¼286 |
£¼273 |
£¼286 |
|
Fuel type |
£¨summer£©0#,£¨winter£©10# |
|
Lube oil type |
SAE-10W30£¨above CC grade£© |
|
Rated rotation speed (rpm) |
3000/3600 |
|
Power factor(cosØ) |
1 |
|
Phase |
Singel phase |
Singel phase |
Three phase |
|
Structure type |
Open-frame type |
|
Starting system |
Rcoil starter/electric starter |
|
Fuel tank capacity(L) |
13.5 |
|
Oil capacity(L) |
0.75 |
1.1 |
1.65 |
|
Noise level(dB) |
105 |
108 |
110 |
110 |
|
Net weight(Kg) |
48 |
65 |
105 |
105 |
|
Gross weight(Kg) |
50 |
73 |
114 |
114 |
|
Overall dimension(mm) |
640x480x540 |
660x505x565 |
745x505x655 |
745x505x655 | |
|
|
