Position: Home - Products > Air-cooled Diesel Generators

Back>>

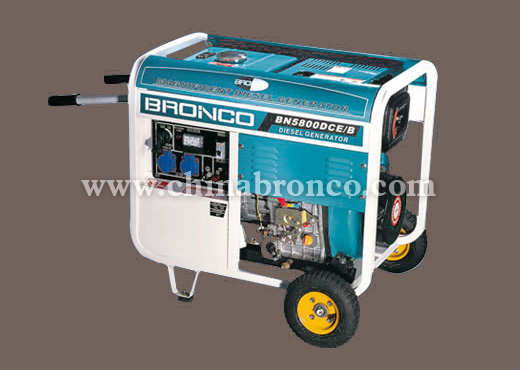

Model: BN5800DCE/B

Feature:

  1. With large capacity fuel tank ,with fuel guage.
  2. Gensets with low oil pressure .over-voltage,over-loaded protection system, running safety and reliable.
  3. Several control panel models: ATS,intelligent digital,normal panel or remote control panel,ect.for clients option.
  4. Portable,beautiful shape,with wheel and handle.
  5. Anti-shock design.
  6. Single phase or three phase alternator for clients option.
  7. The output power can be enlarged by fixed with engine BN186FA according to clients request.
  8. The dimension is the outer sizes of the packages.

    Model
    BN5800DCE/A
    BN5800DCE/B
    BN5800DCE/C
    BN5800DCE/D
    BN5800DCE/E

    Engine model
    BN186F/E
    BN186F/E
    BN186F/E
    BN186F/E
    BN186FA/E

    Rated frequency (Hz)
    50
    60
    50
    60
    50
    60
    50
    60
    50
    60

    Rated voltage (V)
    230
    240/120
    230
    240/120
    230
    240/120
    230
    240/120
    230
    240/120

    Rated current (A)
    19.5
    20.8/41.7
    19.5
    20.8/41.7
    19.5
    20.8/41.7
    19.5
    20.8/41.7
    21.8
    20.8/41.7

    Rated output power (Kw)
    4.5
    5
    4.5
    5
    4.5
    5
    4.5
    5
    5.5
    6.0

    Max.output power (Kw)
    5
    5.5
    5
    5.5
    5
    5.5
    5
    5.5
    6.3
    7.6
    Bore¡ÁStroke©zmm©{
    86¡Á70
    86¡Á72
    Compression ratio
    19£º1
    Fuel consumption£¨g/Kw.h)
    £¼273.
    Oil consumption£¨g/KW.h)
    £¼4.73
    Starting system
    Recoil starter/E-starter
    Rotation direction
    clockwise
    Lubrication system
    pressure splashed
    Fuel type
    £¨summer£©0#£¬£¨winter£©10#
    Lube oil brand
    SAE-10W30£¨above CC grade£©

    Rated rotation speed (rpm)
    3000/3600

    Power factor (cosØ)
    1

    Phase
    Singel phase
    Singel phase
    Singel phase

    Structure type
    Open-frame type

    Starting system
    Recoil starter/Electric starter

    Fuel tank capacity(L)
    13.5
    13.5
    13.5

    Oil capacity(L)
    1.65
    1.65
    1.65

    Noise level (dB)
    110
    110
    110

    Net weight (Kg)
    105
    105
    105
    118
    105
    Gross weight(Kg)
    114
    114
    114
    125
    114

    Overall dimension (mm)
    745¡Á505¡Á655
    745¡Á505¡Á655
    745¡Á505¡Á655
    745¡Á505¡Á670
    745¡Á505¡Á655
