Position: - > Generadores de Diesel Enfriados por Aire |
![]() |
Back>> |
 |

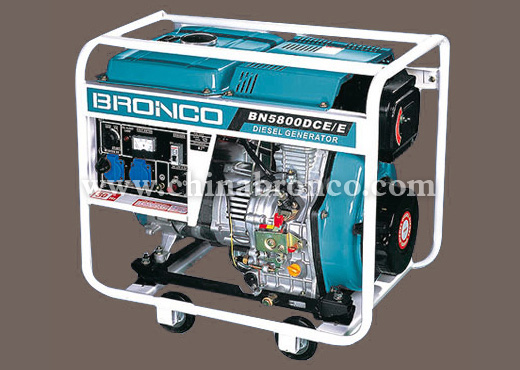

| Model: BN5800DCE/E |
|
Feature:
-
With large capacity fuel tank ,with fuel guage.
-
Gensets with low oil pressure .over-voltage,over-loaded protection system, running safety and reliable.
-
Several control panel models: ATS,intelligent digital,normal panel or remote control panel,ect.for clients option.
-
Portable,beautiful shape,with wheel and handle.
-
Anti-shock design.
-
Single phase or three phase alternator for clients option.
-
The output power can be enlarged by fixed with engine BN186FA according to clients request.
-
The dimension is the outer sizes of the packages.
|
Model |
BN5800DCE/A |
BN5800DCE/B |
BN5800DCE/C |
BN5800DCE/D |
BN5800DCE/E |
|
Engine model |
BN186F/E |
BN186F/E |
BN186F/E |
BN186F/E |
BN186FA/E |
|
Rated frequency (Hz) |
50 |
60 |
50 |
60 |
50 |
60 |
50 |
60 |
50 |
60 |
|
Rated voltage (V) |
230 |
240/120 |
230 |
240/120 |
230 |
240/120 |
230 |
240/120 |
230 |
240/120 |
|
Rated current (A) |
19.5 |
20.8/41.7 |
19.5 |
20.8/41.7 |
19.5 |
20.8/41.7 |
19.5 |
20.8/41.7 |
21.8 |
20.8/41.7 |
|
Rated output power (Kw) |
4.5 |
5 |
4.5 |
5 |
4.5 |
5 |
4.5 |
5 |
5.5 |
6.0 |
|
Max.output power (Kw) |
5 |
5.5 |
5 |
5.5 |
5 |
5.5 |
5 |
5.5 |
6.3 |
7.6 |
|
Bore¡ÁStroke©zmm©{ |
86¡Á70 |
86¡Á72 |
|
Compression ratio |
19£º1 |
|
Fuel consumption£¨g/Kw.h) |
£¼273. |
|
Oil consumption£¨g/KW.h) |
£¼4.73 |
|
Starting system |
Recoil starter/E-starter |
|
Rotation direction |
clockwise |
|
Lubrication system |
pressure splashed |
|
Fuel type |
£¨summer£©0#£¬£¨winter£©10# |
|
Lube oil brand |
SAE-10W30£¨above CC grade£© |
|
Rated rotation speed (rpm) |
3000/3600 |
|
Power factor (cosØ) |
1 |
|
Phase |
Singel phase |
Singel phase |
Singel phase |
|
Structure type |
Open-frame type |
|
Starting system |
Recoil starter/Electric starter |
|
Fuel tank capacity(L) |
13.5 |
13.5 |
13.5 |
|
Oil capacity(L) |
1.65 |
1.65 |
1.65 |
|
Noise level (dB) |
110 |
110 |
110 |
|
Net weight (Kg) |
105 |
105 |
105 |
118 |
105 |
|
Gross weight(Kg) |
114 |
114 |
114 |
125 |
114 |
|
Overall dimension (mm) |
745¡Á505¡Á655 |
745¡Á505¡Á655 |
745¡Á505¡Á655 |
745¡Á505¡Á670 |
745¡Á505¡Á655 | |
|
|
